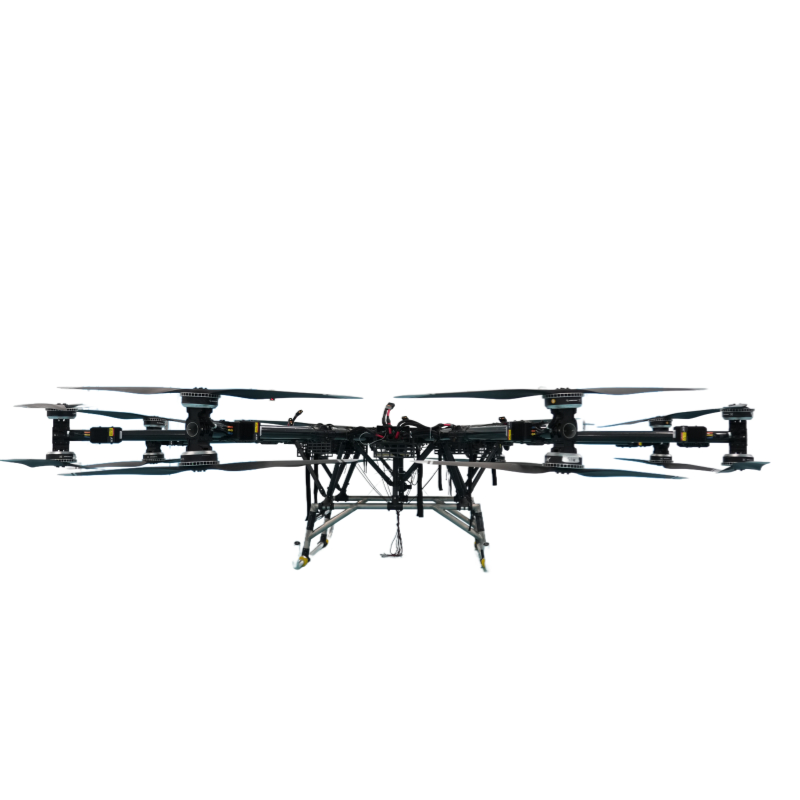

BEONDT D30 300KG Lifting drone Transport drone Logistics drone

BEONDT D30 300KG Lifting drone Transport drone Logistics drone

BEONDT transport drone D300 can carry a maximum load of 300KG. It can transport construction materials as well as fruits, rice, corn and other crops.

  • Артикул № :

    D300
  • Заказ (Минимальный заказ) :

    1
  • Оплата :

    T/T
  • Происхождение продукта :

    CHINA
  • Цвет :

    RED
  • Порт доставки :

    SHANGHAI
  • Время выполнения :

    30DAYS

The 300 kg lifting drone is mainly used in emergency rescue and industrial transportation. It has multi-scenario adaptability and high load-bearing capacity. The following are the specific technical features:

Core performance

‌Maximum load‌: 300 kg, can carry ICU equipment, folding stretchers, mechanical arms and other medical equipment, or transport materials such as building materials and ore samples. ‌ ‌

Multi-scenario adaptability

‌Complex terrain‌: Supports mountainous, urban canyon, disaster ruins and other scenes, equipped with Beidou navigation and binocular vision system to achieve millimeter-level obstacle avoidance. ‌

‌Extreme weather‌: Protection level IP55, operating temperature range -20°C to 45°C, support rainstorm, dust and other environmental operations. ‌

Power and safety

‌Power system‌: Adopt hybrid power (fuel + electric) or high energy density battery, combined with lightweight composite fuselage, to solve the contradiction between load and endurance. ‌

‌Redundant design‌: Support 7 motor power redundancy to ensure safe flight in case of failure; dual-machine joint lifting technology can improve transportation efficiency and stability. ‌

Application Cases

‌Emergency Transportation‌: Successfully transported a full set of ICU equipment and two medical staff to the disaster site in a 2025 actual combat exercise. ‌

‌Industrial Transportation‌: Carried 50 kg of equipment to complete the maintenance of transmission towers during power inspections, increasing efficiency by 8 times compared to manual labor; Mining transportation shortened the geological exploration cycle by 40%.

Technical Parameters

Unfold the wheelbase

5070mm

Motor stator size

1671*60.6mm

Propeler size

1620mm

Fuselage unfolded dimension

5970*5970*880mm

Fuselage folded dimensions

3650-3650*880mm

Rated load

250kg

Maximum load

≤300kg

Maximum take-off weight

620kg

Bare metal self-weight

180kg

Battery weight

140kg

Flight altitude

1-2km

Maximum flight speed

13m/s

Flight distance

1-2km

Battery capacity

18s 44000mAh

Number of batteries

8

Battery weight

17.5kg

Battery materials

high-rate lithium battery

Charging time

30-40 minutes

Operating voltage

66v

Charger power

3000*8

Full load power

88000w

Recommended ambient temperature

15~35℃

Propeller material

Carbon

Fuselage material

Carbon fiber /aluminum alloy

Payload (300kg) endurance

10 minutes

Payload (250kg) endurance

12 minutes

No-load (200kg) endurance

14 minutes

Number of camera axes

2 axes

Camera zoom factor

10 times

Camera resolution

1080p 25fps

Remote control screen resolution

1080p

Full load power

880C0wresolution

Positioning system

GPS+dual-band RTK

Positioning accuracy

10-20cm

FAQs

1. What is the approximate service life of a drone?

5-10 years, mainly depends on the user's maintenance of the drone.

2. How many flight hours?

Mainly, the battery needs to be replaced with a new one after 400-500 cycles of charging.

3. Which parts need to be replaced regularly?

Propellers, landing gear, water pumps, centrifugal nozzles, we recommend equipping each drone with 2 pairs.

4. What services does the drone need?

Clean the drone frequently and pay attention to whether the screws are loose and need to be replaced.

5. How long is the interval?

Mainly depends on the user's use. You should observe the condition of the drone frequently.



Why choose BEONDT?

1. We are an experienced manufacturer. We have 16 years of industry experience, from R&D to production.

2. We are a manufacturer that values quality and service. We always believe that quality and service are the life and soul of an enterprise.

3. We have the ability to provide customers with the best customized services, because our production lines and personnels are fully equipped.
